H4 Series倾角传感器


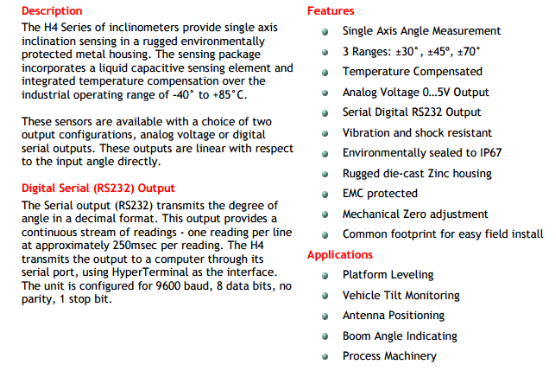

介绍: Technical SpecificationsINPUT PARAMETERSMEASURING RANGES±30°, ±45º, ±70°MEASUREMENT AXISSinglePOWER SUPPLY8…30 VDC Non-Regulatedoptional 5VDC RegulatedOUTPUT PARAMETERSNON-LINEARITY1 0.5% Full Range f…


Technical Specifications

























INPUT PARAMETERS






MEASURING RANGES





±30°, ±45º, ±70°




MEASUREMENT AXIS





Single




POWER SUPPLY





8…30 VDC Non-Regulated







optional 5VDC Regulated













OUTPUT PARAMETERS






NON-LINEARITY1





< 0.5% Full Range for ±30º model


















< 0.2% Full Range for ±45º, ±70º models










NULL REPEATABILITY





< 0.05°





TRANSVERSE SENSITIVITY





< 1.0% at 30º Tilt




SENSOR ELEMENT RESPONSE TIME




< 0.3 seconds (<300mSec)


BANDWIDTH





3 Hz




OPTIONAL TEMPERATURE





< ±1.0°  (over full operating temperature range)


COMPENSATION OUTPUT DRIFT





















TEMPERATURE RANGE






OPERATING TEMPERATURE





-40ºF to +185ºF

(-40°C to +85°C)


STORAGE TEMPERATURE





-49ºF to +194ºF

(-45°C to +90°C)










ANALOG (0…5V) OUTPUT





Temperature Compensation







Over full operating temperature range










ZERO OFFSET





2.5VDC typical




ANALOG VOLTAGE OUTPUT (Linear Range)




0.5…4.5VDC




OUTPUT VOLTAGE SENSITIVITY













±30º




66.7mV/º






±45º




44.4mV/º






±70º




28.6mV/º




ACCURACY OVER TEMPERATURE












±30º




< ±0.5º







±45º




< ±0.5º







±70º




< ±1.0º





RESOLUTION













±30º




< 0.02º







±45º




< 0.03º







±70º




< 0.04º





CURRENT CONSUMPTION





10mA typical




OUTPUT IMPEDANCE





< 100 OHMS




DIGITAL (RS232) OUTPUT





Temperature Compensation







Over full operating temperature range
























±30º




< ±0.5º







±45º




< ±0.5º







±70º




< ±1.0º





CURRENT CONSUMPTION





10mA typical




RS232 OUTPUT FORMAT





ASCII Decimal





BAUD RATE




9600







DATA BITS





8







PARITY




None






STOP BITS





1





MECHANICAL CHARACTERISTICS



HOUSING


Die Cast Zinc


ENVIRONMENTAL RATING


IP67


MOUNTING HOLES


Two #6-32


MOUNTING PLANE


Vertical Surface


OUTLINE DIMENSIONS


Ø1.95” x 1.1” (Ø49.5 x 28mm) See Drawing


ELECTRICAL CONNECTION


1ft. Teflon Cable with 3 pigtail leads


WEIGHT


8 ounces  (227 grams)










Notes: 1. Non-linearity generated by best fit straight line using least squares regression. Output is linear with respect to the input angle directly.

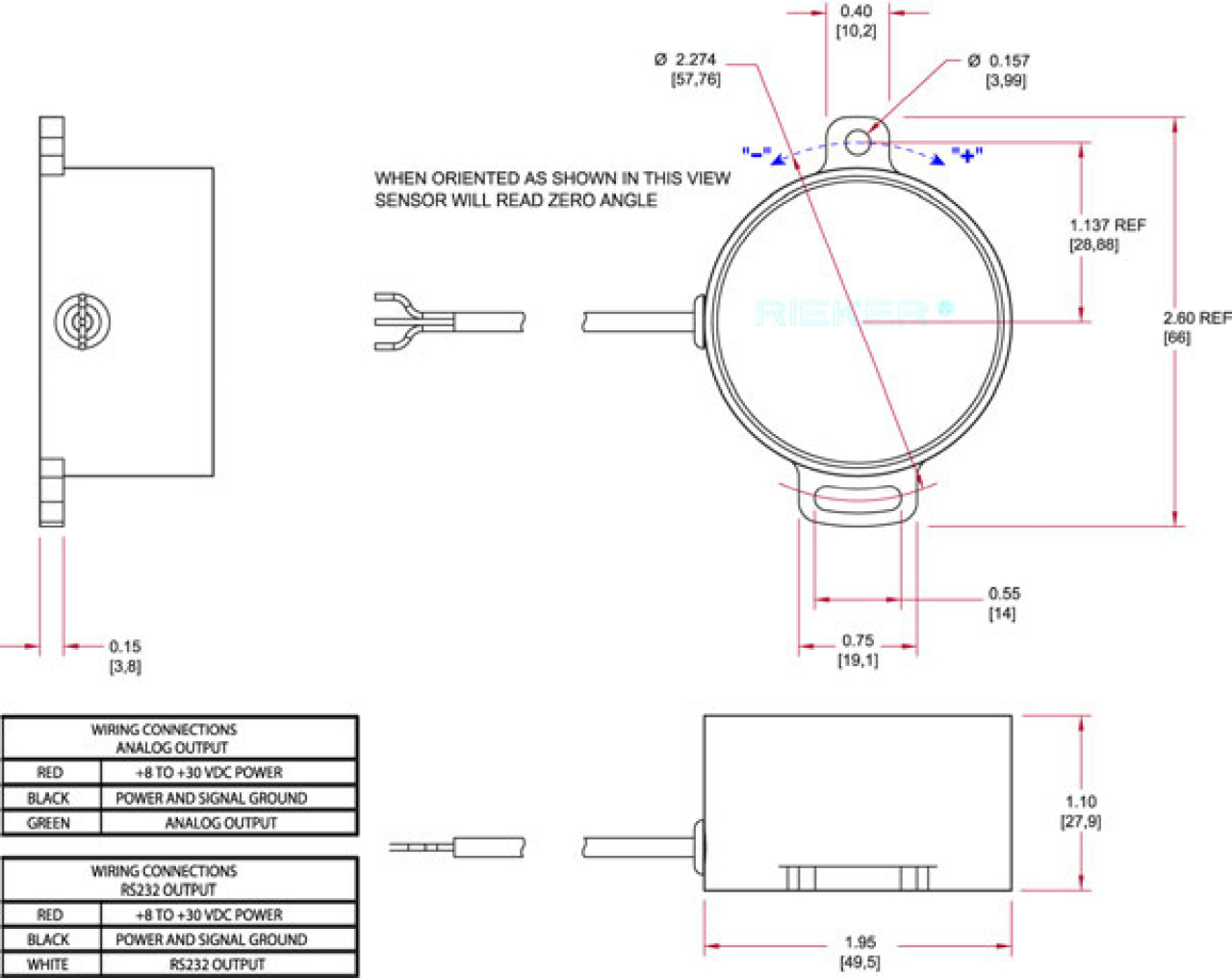

Figure 1: Dimensions (inches [mm]) and Wiring Connections                                                               blob.png
